STRUCTURAL STEEL

Industrial Structures and Buildings.

Its design capacity, its substantial resources, its considerable output, its commitment to service make EBS a choice supplier for large industrial and infrastructure projects. The plant has some of the largest machinery units in the Middle East for manufacturing heavy members, for instance in automatic submerged welding and capability in cutting and drilling under computerized numeric control (CNC).

The engineering, planning, manufacturing and delivery of EBS all are large enough as well as suitably flexible to undertake major projects in an effective and competitive manner. EBS has an established track in power plants, petrochemicals and large industrial plants.

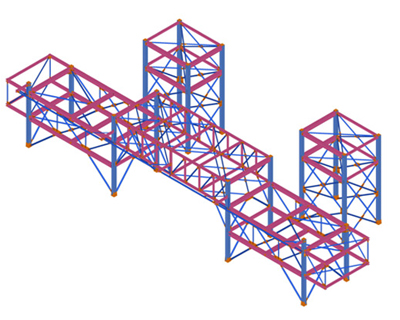

Pipe rack: Supporting structure for Petroleum Gas Pipe line.

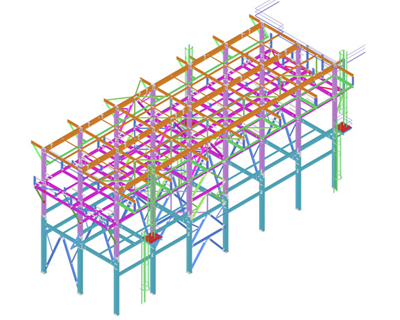

Pipe rack: Supporting structure for Petroleum Oil Pipe line.

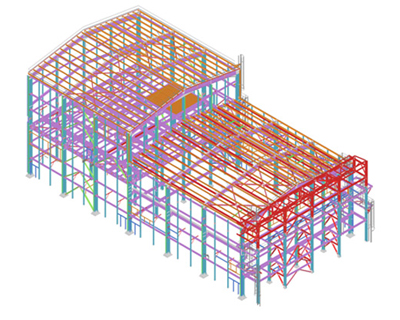

Gas Turbine House: industrial Building for housing Gas turbine station

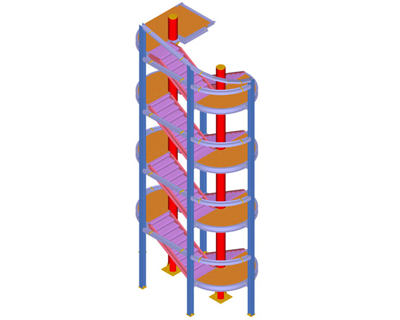

Emergency Egress stairs

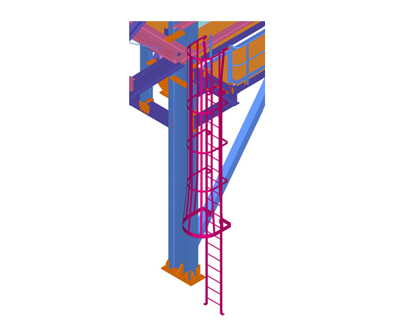

Industrial Ladders with safety guarded

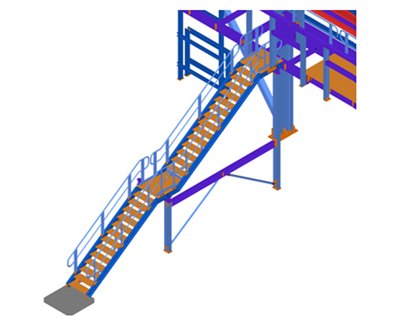

Industrial stairs with handrails.

EBS can engineer any kind of stairs to meet the project requirement

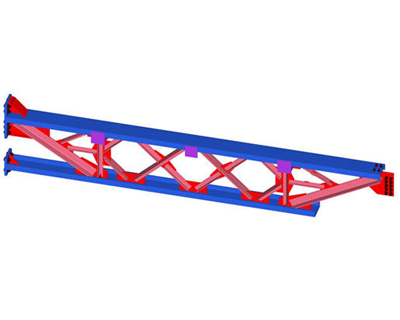

Truss member

Complex Bracing wall and floor members

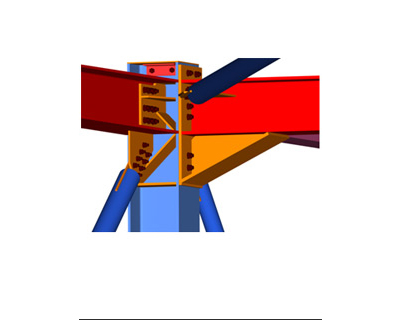

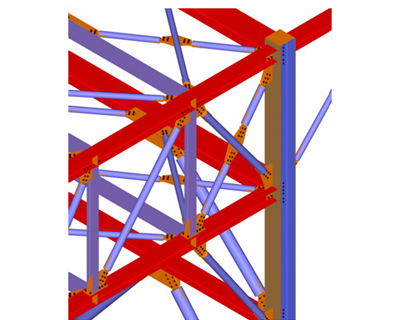

Column, Beam & Bracing connection

As structural steel manufacturer, EBS can engineer and manufacture any complex structures and buildings. Tekla structure software has been employed for modeling and generating shop drawing for all complex structures.

High rise and Low rise Buildings

High and Low rise buildings are usually city block commercial developments. The architectural and aesthetic requirements will control interior and exterior column spacing and therefore grid (bay) size.

Building framing consists of either two way rigid frame, in a one-way rigid and one-way braced frame or Two way braced frame. The floor deck consists in either:

  • a low depth non-composite profiled steel deck supported by joints, beams and intermediate support column, or
  • a composite profiled steel deck supported as above, or
  • a pre-cast concrete plank, whether hollow core, solid or pre-slab resting on the joists / beams.

The beams will be typically fitted with stubs to ensure composite action along their axis.

Multi-storey structures can be sub-divided into:

  • 1. Fully steel framed structures with rigid frame or braced frame systems
  • 2. Beam and column steel frames connected to reinforced concrete core or shear wall.

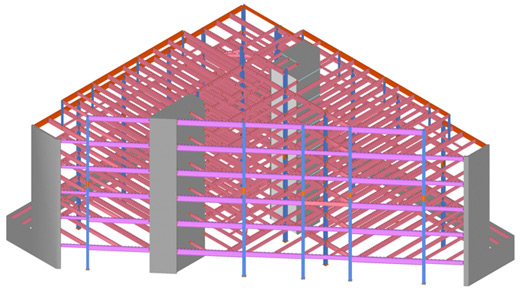

Commercial Building: Low rise building.
No of Floors : B + G + 4 + P
Building Size : 34.6m x 40.2m

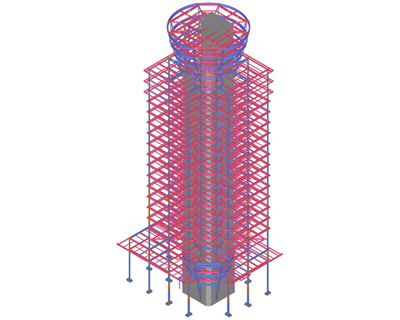

Office Tower in Bahrain A high rise building. No of Floors : 19+ 4 floors
Height : 90m
Size : 23m x 31m

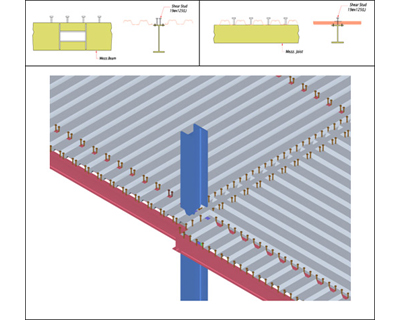

Steel Deck Slab

The floor system consists of concrete supported on steel decking sheet which is resting on composite or non-composite joist and beams. For composite joist and beams shear stud connectors can be field welded through decking or shop welded with decking pre- punched.

The steel beams have the flexibility to allow penetrations within the web depth to allow services to pass through by providing web openings

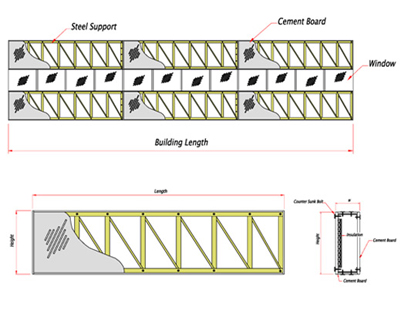

EBS Wall System

EBS insulated wall system is a unique product offered by EBS. This is a pre-fabricated and pre-assembled wall panels replacing conventional block wall. The elements in EBS insulated wall systems are cold form and hence it is a light weight wall. It is easier and faster to erect with less man power and hence it is a cost effective solution.



Special Steel Structure.

EBS is capable of handing special type structures with complex shape by nature. For instant, Crown structure of a high rise towers, international airport terminal buildings are unique in design and appearance. To meet the uniqueness, steel structure will be designed and modeled with consideration of architectural needs and design code guidance.

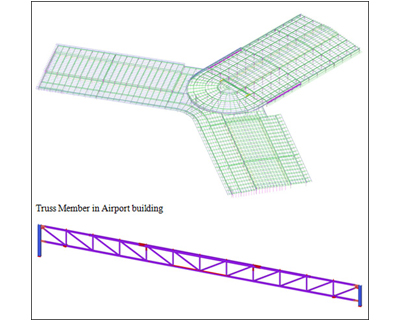

Airport Terminal Building

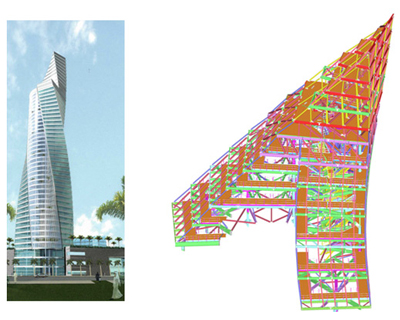

Special Crown structure for Kuwait Tower @ 218m

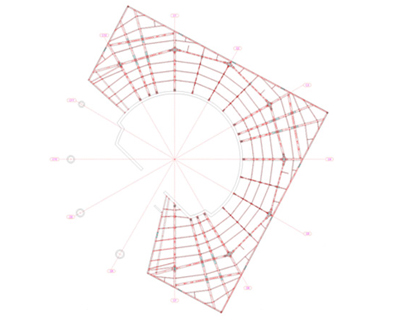

Typical Floor plan of Kuwait Tower
